Calculate area per polygon, their intersection and the shared areas.

Author

Miriam Lerma

Published

January 21, 2022

Intro

Here, some steps for:

  • Generating kernel polygons

  • Calculating the intersection between two polygons

  • Plotting polygons and their intersection

  • Creating a table with the shared areas between two polygons

Data

To replicate the exercise, load data from the package ‘sula’. For accessing the data, you need to have the package installed.

#devtools::install_github("MiriamLL/sula")
library(sula)

The data is from 10 tracked individuals.

GPS_raw<-(GPS_raw)

Create polygons

Select which individuals you want to compare

GPS01<-subset(GPS_raw,GPS_raw$IDs=='GPS01')
GPS02<-subset(GPS_raw,GPS_raw$IDs=='GPS02')

With the following function you can create the polygon of the individual using an specific value.

Your need to provide the name of the column that contains the latitude, the name of the column that contains the longitude, and the value you want to calculate (E.g. core=50, general=95).

create_polygon<-function(Data=Data, lon_col=lon_col,lat_col=lat_col,value=value){

  Data<-Data
  Data$Longitude<-Data[[lon_col]]
  Data$Latitude<-Data[[lat_col]]

  #convert to spatial
  DataSp<-as.data.frame(Data)
  sp::coordinates(DataSp) <- c("Longitude", "Latitude")
  sp::proj4string(DataSp) <- sp::CRS("+init=epsg:4326")

  #create polygon
  DataSp<-adehabitatHR::kernelUD(DataSp,h="href") # Using reference
  Data_50<-adehabitatHR::getverticeshr(DataSp,percent=value)

  Data_sf_50<-sf::st_as_sf(Data_50)

  return(Data_sf_50)
}

Calculate polygons of 50%.
Some warnings may appear

GPS01_50<-create_polygon(Data=GPS01,lat_col="Latitude",lon_col="Longitude",value=50)
GPS02_50<-create_polygon(Data=GPS02,lat_col="Latitude",lon_col="Longitude",value=50)

Calculate polygons of 95%.

GPS01_95<-create_polygon(Data=GPS01,lat_col="Latitude",lon_col="Longitude",value=95)
GPS02_95<-create_polygon(Data=GPS02,lat_col="Latitude",lon_col="Longitude",value=95)

Compare

With the function intersection of the package sf you can obtain the area where both polygons intersect

library(sf)

Source: Geocompr

sf_use_s2(FALSE)
Intersection_95<-sf::st_intersection(st_as_sf(GPS01_95),
                                     st_as_sf(GPS02_95))
Intersection_50<-sf::st_intersection(st_as_sf(GPS01_50),
                                     st_as_sf(GPS02_50))

Plot

Using the following function plot_overlaps and the package ggplot, you can visualize where the intersection is occurring

library(ggplot2)
plot_overlaps<-function(ID1_95=ID1_95,ID1_50=ID1_50,ID2_95=ID2_95,ID2_50=ID2_50){

  Plot<-ggplot2::ggplot()+

    ggplot2::geom_sf(data = ID1_95,color='#d00000',fill = "#d00000",alpha=0.3,size=1)+
    ggplot2::geom_sf(data = ID2_95,color='#3f88c5',fill = "#3f88c5",alpha=0.3,size=1)+
    ggplot2::geom_sf(data = Intersection_95,  color='#ffba08', fill = "#ffba08",alpha=0.3,size=1)+

    ggplot2::geom_sf(data = ID1_50,color='#d00000',fill = "#d00000",alpha=0.7,size=1)+
    ggplot2::geom_sf(data = ID2_50,color='#3f88c5', fill = "#3f88c5",alpha=0.7,size=1)+
    ggplot2::geom_sf(data = Intersection_50,  color='#ffba08', fill = "#ffba08",alpha=0.7,size=1)+

    ggplot2::labs(x = "Longitude", y="Latitude")+

    theme_bw()

  return(Plot)
}

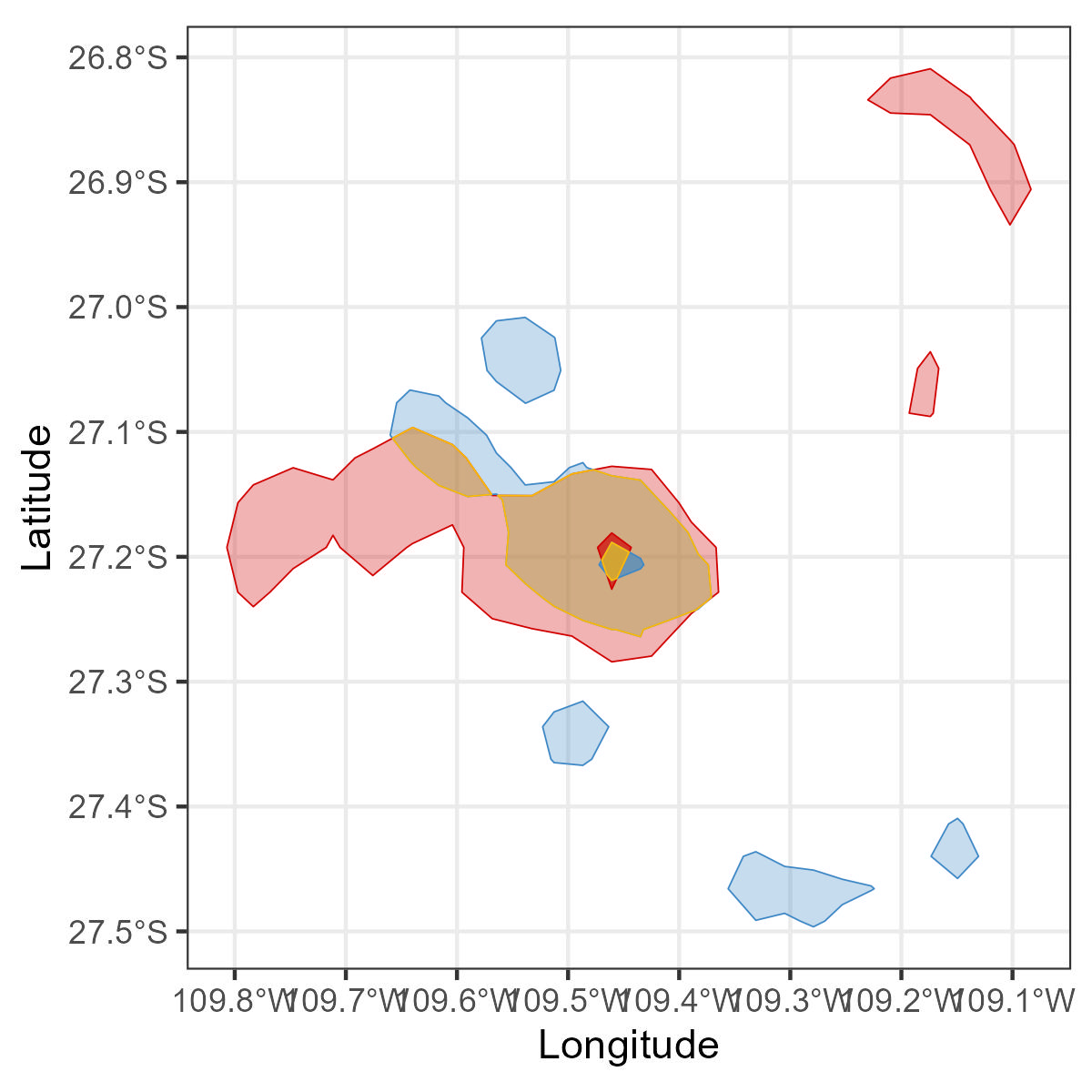

It would show a map with your polygons

overlap_plot<-plot_overlaps(ID1_95=GPS01_95,
                            ID1_50=GPS01_50,
                            ID2_95=GPS02_95,
                            ID2_50=GPS02_50)

overlap_plot

Create table

Once you have your polygons for each individual and also the intersection between polygons, you can now create a table using the following custom function table_areas

To calculate the shared area, the function follows the formula as in Hedd et al. 2014 and McFarlane Tranquila et al. 2013

table_areas<-function(ID1_50=ID1_50,
                      ID2_50=ID2_50,
                      ID1_95=ID1_95,
                      ID2_95=ID2_95,
                      Intersection_50=Intersection_50,
                      Intersection_95=Intersection_95){

  Tabla<-data.frame(
  UDs=c("50","95"),

  ID1_area_km2=c(
    round(as.numeric(units::set_units(st_area(ID1_50),km^2)),2),
    round(as.numeric(units::set_units(st_area(ID1_95),km^2),2))
    ),

  ID2_area_km2=c(
    round(as.numeric(units::set_units(st_area(ID2_50),km^2),2)),
    round(as.numeric(units::set_units(st_area(ID2_95),km^2),2))
    ),

  intersection_area_km2=c(
    round(as.numeric(units::set_units(st_area(Intersection_50),km^2),2)),
    round(as.numeric(units::set_units(st_area(Intersection_95),km^2),2))
  )
  )

  Tabla$shared_area_percent<-
  (Tabla$intersection_area_km2)/
    (
      (Tabla$ID1_area_km2 - Tabla$intersection_area_km2) +
       (Tabla$ID2_area_km2 - Tabla$intersection_area_km2) +
       Tabla$intersection_area_km2)

  return(Tabla)
}

The table contains the area of each polygon, the intersection and the shared areas

areas_table<-table_areas(ID1_50=GPS01_50,
                      ID2_50=GPS02_50,
                      ID1_95=GPS01_95,
                      ID2_95=GPS02_95,
                      Intersection_50=Intersection_50,
                      Intersection_95=Intersection_95)
areas_table$shared_area_percent<-round(areas_table$shared_area_percent*100,2)

It should return a table as the following:

Export

To export the table as csv:

write_csv(areas_table,'areas_table.csv')

To export the polygons as shapefiles:

st_write(GPS01_50, "GPS01_50.shp")
st_write(GPS02_50, "GPS02_95.shp")
st_write(Intersection_50, "Intersection_50.shp")

st_write(GPS01_95, "GPS01_95.shp")
st_write(GPS02_95, "GPS02_95.shp")
st_write(Intersection_95, "Intersection_95.shp")
